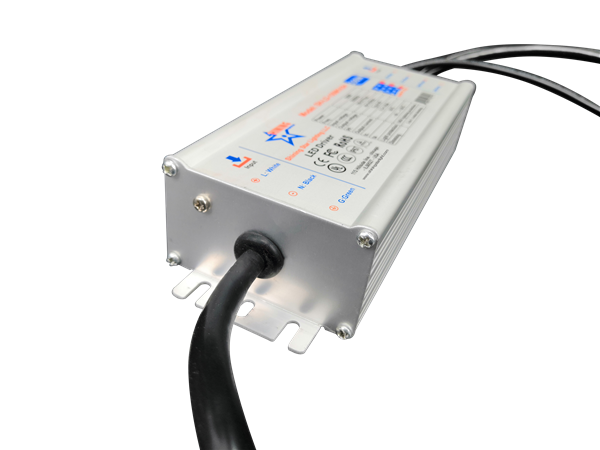

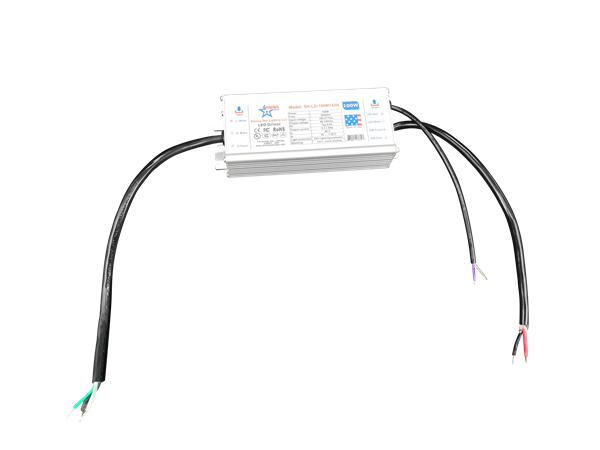

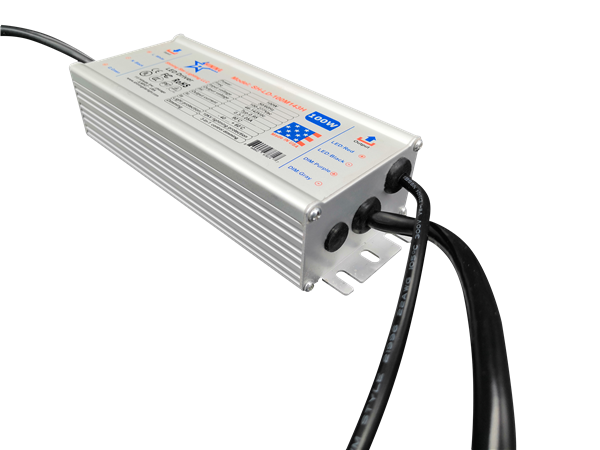

Model List：
Model | AC Input Range | Max. Pout | Vout Range | Iout Range | THD(Typ.) | PF(Typ.) | EFF.(Typ .) | Max.Tc |

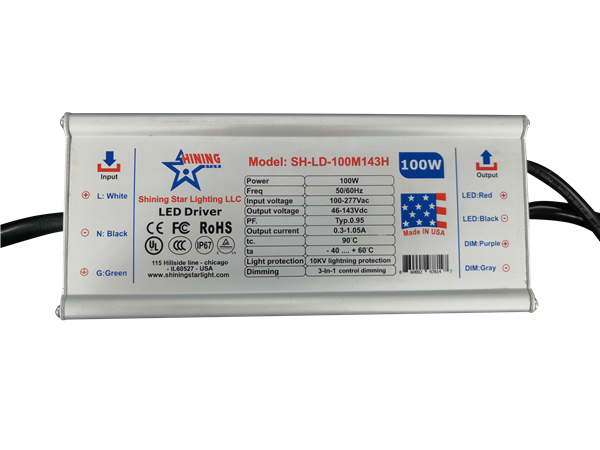

SH-LD- 100M143H | 90-305Vac | 100W | 46-143Vdc | 0.3-1.05A | 8 | 0.98 | 91 | 90℃ |
Input Characteristics：
Parameter | Min. | Typ. | Max. | Remark |
Rated AC Input Range | 100Vac |
| 277Vac |
|
AC Input Range | 90Vac |
| 305Vac |
|
Input Frequency Range | 47Hz | 50/60Hz | 63Hz |
|
Max Input Current |
|
| 1.2A | 100Vac@Full Load |
Max Inrush Current (120Vac) |
|
| 100A | Cold Start |
Max Inrush Current (220Vac) |
|
| 150A | Cold Start |
Max Inrush Current (277Vac) |
|
| 160A | Cold Start |
No Load Power |
|
| 3W | 220Vac,50Hz |
Power Factor | 0.95 | 0.98 |
| 220Vac,50Hz @Full load |
0.90 |
|
| 100-277Vac,50Hz @70-100 Load |
THD |
| 8 | 10 | 220Vac@Full Load |
|
| 20 | 100-277Vac@Full Load |
Output Characteristics：
Parameter | Min. | Typ. | Max. | Remark |
Output Voltage Range | 46Vdc |
| 143Vdc |
|
Current Adjustable Range (AOC) | 0.3A |
| 1.05A | Pmax=100W |
No Load Voltage |
|
| 170V |
|
Efficiency@120Vac | 89 | 90 |
| @Full Load |
Efficiency@220Vac | 89.5 | 90.5 |
| @Full Load |
Efficiency@277Vac | 90 | 91 |
| @Full Load |
Output Current Tolerance | -5 |
| +5 |
|
Output Current Ripple(PK-AV) |
| 5 | 10 |
|
Start Current Overshoot |
|
| 10 | @Full Load |
Start-up Time |
|
| 1S | 120Vac |
|
| 1S | 220Vac |
Line Regulation | -2 |
| +2 | @Full Load |
Load Regulation | -2 |
| +2 |
|
Temperature Coefficient | -0.03 /℃ |
| +0.03％/℃ | Tc: 0℃~90℃ |
Short Current Protection |
|
| 15W |
|
Other Characteristics：
Parameter | Min. | Typ. | Max. | Remark |
0-10V Dimming (Optional) | Dim Vmax | 0V |
| 12V |
|
Dim Range | 10 Iomax |
| 100 Ioset |
|
Rec.Dim Range | 1V |
| 10V |
|
PWM Dimming (Optional) | PWM High | 9.8V |
| 10.2V |
|
PWM Low | 0V |
| 0.3V |
|
Frequency | 1KHz |
| 2KHz |
|
PWM Duty | 10 |
| 100 |
|
Resistor Dimming (Optional) | Resistance | 10Kohm |
| 100Kohm |
|
Dim Range | 10 Iomax |
| 100 Ioset |
|
Timming dimming Function(Optional) | SCM Procedure | Programmed(Programmable) |
Lifetime | Tc≤75℃ | 62,000 hours |
|
MTBF | 236,000 hours | 220Vac, FullLoad, Ta:25℃ |
IP Rate | IP67 |
|
T case | 90℃ |
|
Warranty | 5 Years |
|
Net Weight | 730g |
|
Dimension | 180mm×68mm×41mm | L×W×H |
Note: All the Parameters above are tested Ta25℃, unless specified.
Environmental Requirements：
Parameter | Min. | Typ. | Max. | Remark |
Operation Temperature (Tcase) | -40℃ | 25℃ | +90℃ |
|
Storage Temperature | -40℃ | 25℃ | +85℃ |
|
Operation Humidity | 10 RH |
| 90 RH |
|
Storage Humidity | 5 RH |
| 95 RH |
|
Altitude | -65m |
| 4000m |
|
Safty and EMI/EMS Standards：
CE | EN55015;2013+A1:2015 |
|
RE | EN55015;2013+A1:2015 |
|
Harmonic Current Emission | IEC/EN 61000-3-2 | Class C |
Surge | IEC/EN61000-4-5 | Difference mode 6kV, Common mode 10kV, Criterion B |
Safety Test Items：
Safety | Test | Items | Technical | Indicators | Remark |
Insulation Requirements | UL Insulation Requirements | TUV Insulation Requirements | CCC Insulation Requirements |
|
Input-Output | 1600Vac | 3000Vac | 3750Vac | Reinforced insulation |
Input-Case | 1600Vac | 1500Vac | 1875Vac | Basic insulation |
Input-Dim | 1600Vac | 3000Vac | 3750Vac | Reinforced insulation |
Output-Dim | 1600Vac | 1000Vac | 1000Vac | Additional insulation |
Output-Case | 500Vac | 1000Vac | 1000Vac | Functional insulation |
Dim-Case | 500Vac | 250Vac | 250Vac |
|
Insulation Resistance | ≥10MΩ | Input-Output, Test Voltage:500Vdc |
Ground Resistance | ≤0.1Ω | 25A/1min |
Leak Current | ≤0.75mA | 277Vac |
Note：
1. SHINING STAR Warrants the LED power supply itself meets with EMC standard . However, LED drivers’ EMC should be re-checked when integrated into lighting systems due to unexpected interference as component.
2. Please short line and neutral, LED+ and LED-, Dim+ and Dim- when Hi-pot test.
3. The CCC withstand voltage test needs to disconnect the build-in lightning protection tube. According to the IEC60598-1:14 standard section 10.2,the “build-in lightning protection tube” can be marked on the nameplate to disconnect the discharge tube on testing.
Version | Description | of | Change | Changed | Date | Remark |
REV01 | Original Release | 20200601 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
