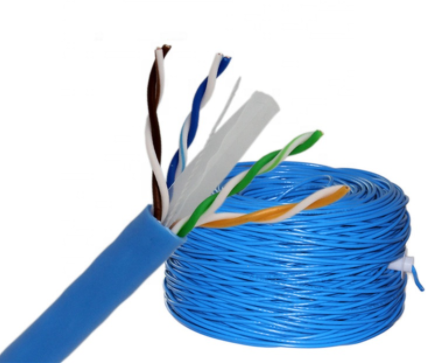

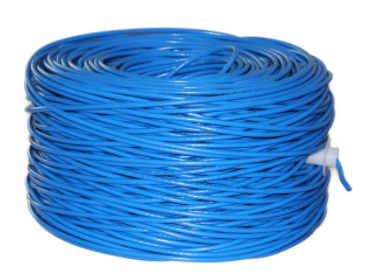

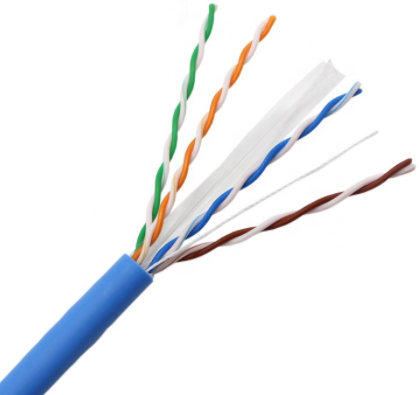

LSZH CAT6 NET CABLE
Features:
● Complies with Category 6 UL444, ANSI/TIA/EIA 568B & ISO/IEC 11801 Standard.
● Supports transmission of digital and analogue voice, data and video signal.
● Products adopt LSZH jacket
● Products can pass FLUKE test
● Rated Temperature: -20° to +70°
Inner conductor | Material | Bare Copper |
Diameter | 0.56mm ± 0.01mm (23AWG) |
Insulation(Dielectric) | Material | HDPE |
Thickness | ≥ 0.18mm |
Diameter | 0.98± 0.02mm |
Cross Separator | Material | Plastic |
Rip-cord | Material | Nylon |
Outer Jacket | Material | LSZH |
Nominal O.D | 5.8mm ± 0.20mm |
Color | BLUE |
Twisted pair | N/A | Pair 1 : Blue, White / Blue Pair 2 : Orange, White / Orange Pair 3 : Green, White / Green Pair 4 : Brown, White / Brown |
|
|
Frequency | Impedance | Return Loss | Attenuation | NEXT Worst Pair | NEXT Power Sum | ELFEXT Worst Pair | ELFEXT Power Sum | Nominal Velocity Propagation |
MHz | Ohm | dB | dB/100 | dB | dB | dB | dB |
1 | 100±15 | 20.0 | 2.0 | 74.3 | 72.3 | 67.8 | 64.8 | 0.68C |
4 | 23.0 | 3.8 | 65.3 | 63.3 | 55.8 | 52.8 |
8 | 24.5 | 5.3 | 60.8 | 58.8 | 49.7 | 46.7 |
10 | 25.0 | 6.0 | 59.3 | 57.3 | 47.8 | 44.8 |
16 | 25.0 | 7.6 | 56.2 | 54.2 | 43.7 | 40.7 |
20 | 25.0 | 8.5 | 54.8 | 52.8 | 41.8 | 38.8 |
25 | 24.3 | 9.5 | 53.3 | 51.3 | 39.8 | 36.8 |
31.25 | 23.6 | 10.7 | 51.9 | 49.9 | 37.9 | 34.9 |
62.5 | 21.5 | 15.4 | 47.4 | 45.4 | 31.9 | 28.9 |
100 | 20.1 | 19.8 | 44.3 | 42.3 | 27.8 | 24.8 |
150 | 100±18 | 18.9 | 24.7 | 41.7 | 39.7 | 24.3 | 21.3 |
200 | 18.0 | 29.0 | 39.8 | 37.8 | 21.8 | 18.8 |
250 | 17.3 | 32.8 | 38.3 | 36.3 | 19.8 | 16.8 |
Application:
● 1000 Base T (IEEE 802.3)
● Fast Ethernet (IEEE 802.3u)
● 1000vg-AnyLAN (IEEE 802.12)
● Token Ring (IEEE 802.5)
● TP-PMD (ANSI X3T9.5)
● 1000 Mbps CDDI
