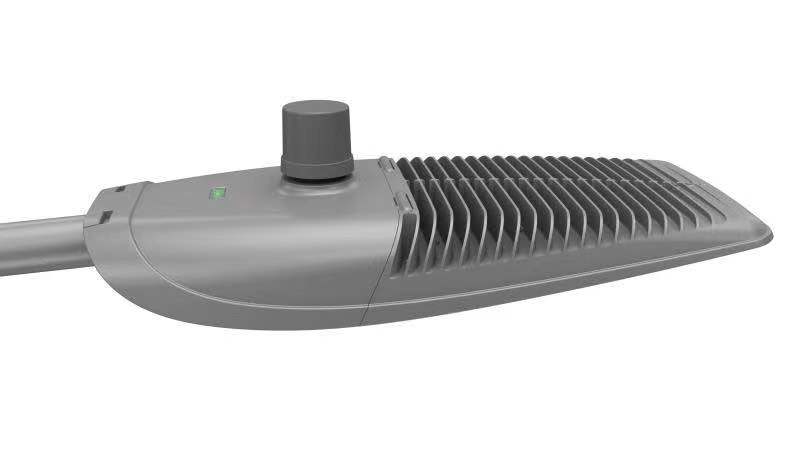

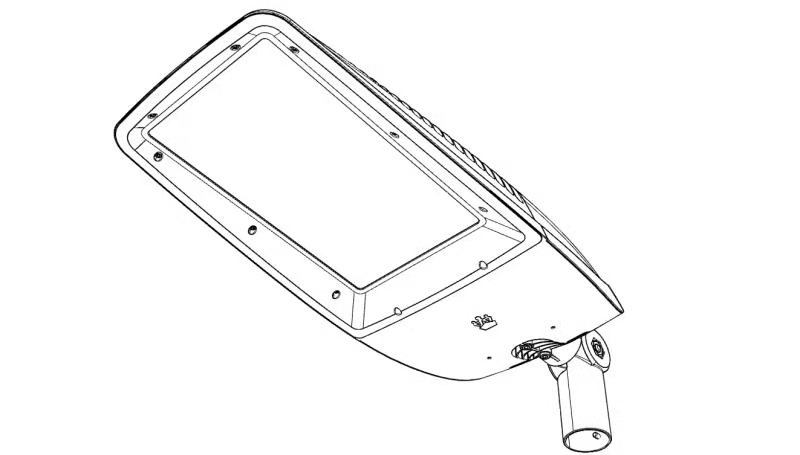

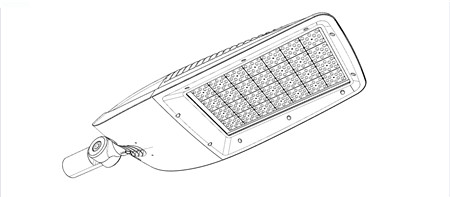

Products design show

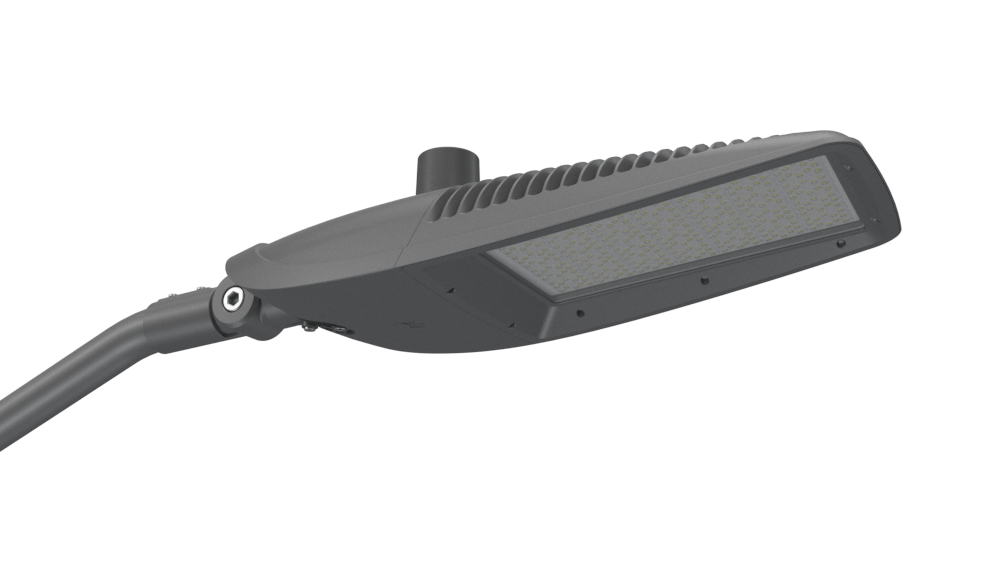

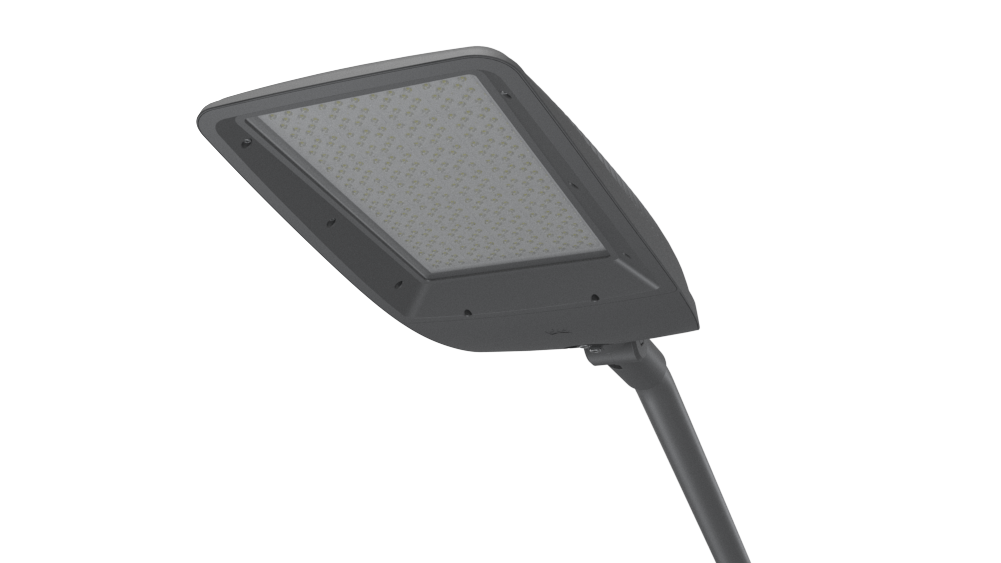

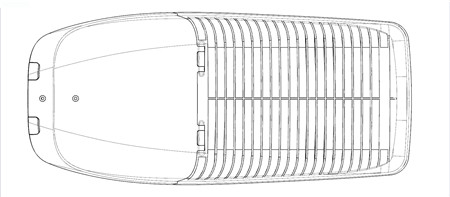

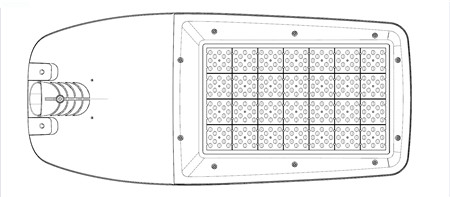

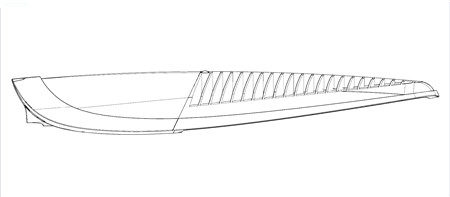

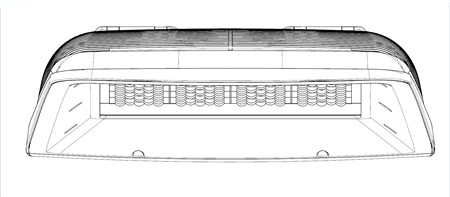

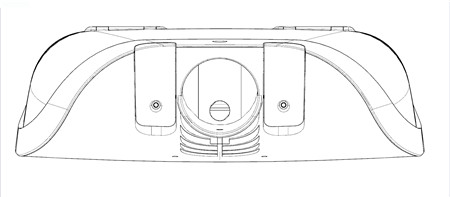

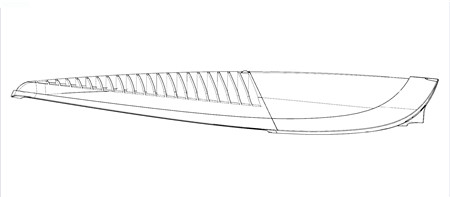

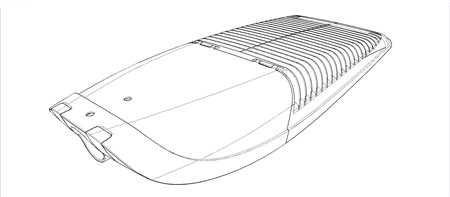

Different side view

Standard series Details

Product Picture	Size	CCT	Voltage	Product Power	Light Lumen	Beam angle	LED Chips	Product Model	IP Grade
	600*340*123mm	3000-6500K	AC85-265V	50W	140LM/W	140*70	3030	SH-S/ST-50W	IP 66
				100W	140LM/W		3030	SH-S/ST-100W	IP 66
				120W	140LM/W		3030	SH-S/ST-120W	IP 66
				150W	140LM/W		3030	SH-S/ST-150W	IP 66
				160W	140LM/W		3030	SH-S/ST-160W	IP 66
				180W	140LM/W		3030/5050	SH-S/ST-180W	IP 66
				200W	140LM/W		3030/5050	SH-S/ST-200W	IP 66
	760*343*114mm	3000-6500K	AC85-265V	220W	140LM/W	140*70	3030/5050	SH-S/ST-220W	IP 66
				250W	140LM/W		3030/5050	SH-S/ST-250W	IP 66
				260W	140LM/W		3030/5050	SH-S/ST-260W	IP 66
				280W	140LM/W		3030/5050	SH-S/ST-280W	IP 66
				300W	140LM/W		3030/5050	SH-S/ST-300W	IP 66
				350W	140LM/W		5050	SH-S/ST-350W	IP 66

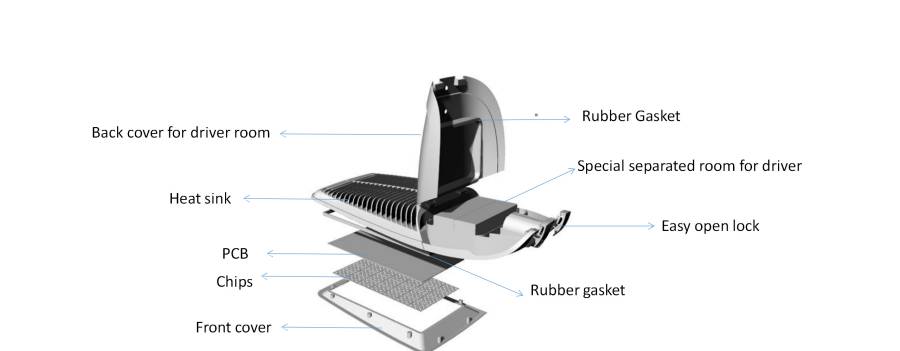

Parts show case

Full body aluminum design, better heat sink

Smart Nema Light control socket

Horizontal heat sink slice design

Indpendent IP driver room

Balance devices

Easy open lock

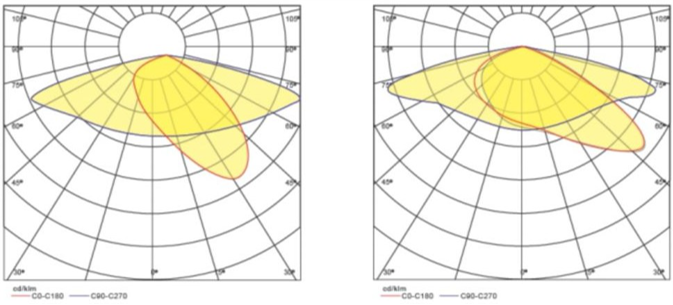

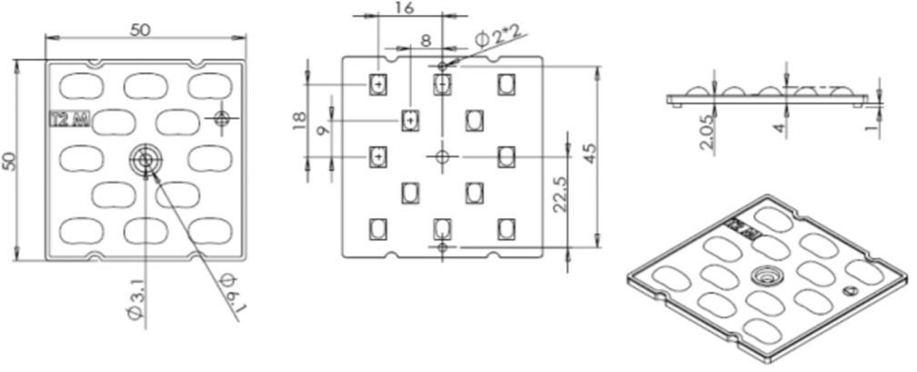

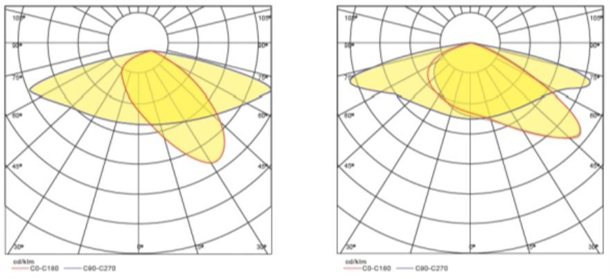

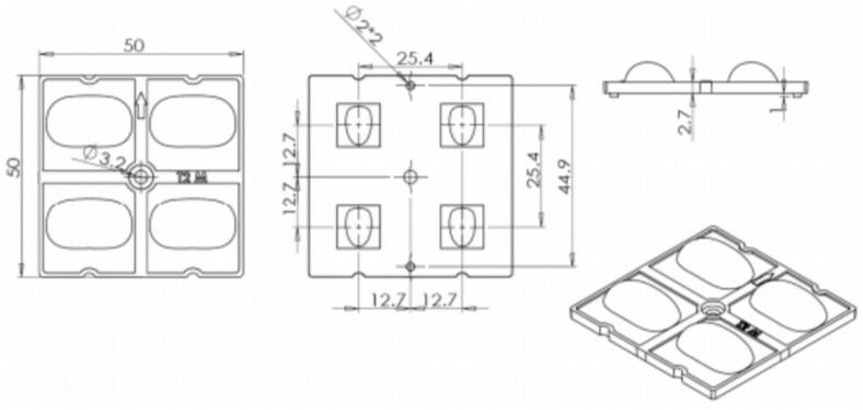

Multiple beam angle lens

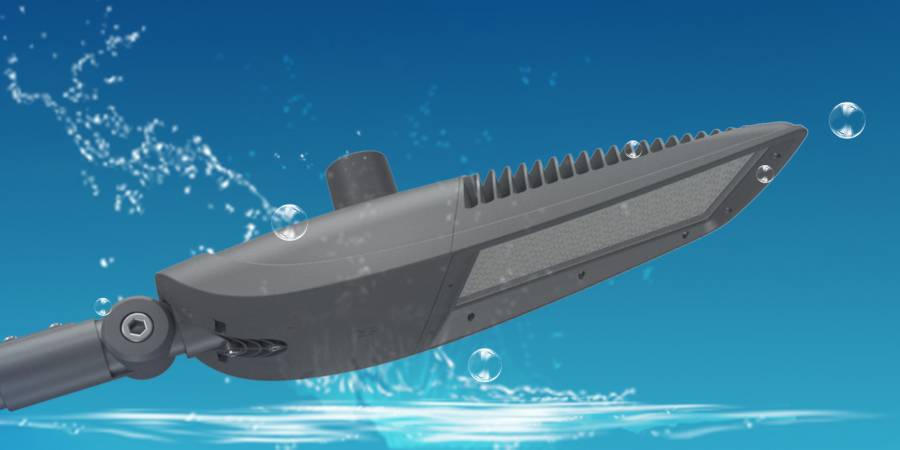

IP66 Water proof Grade

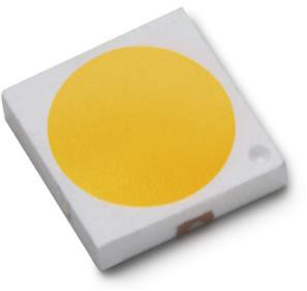

High Lumen chips

SMD 3030/5050

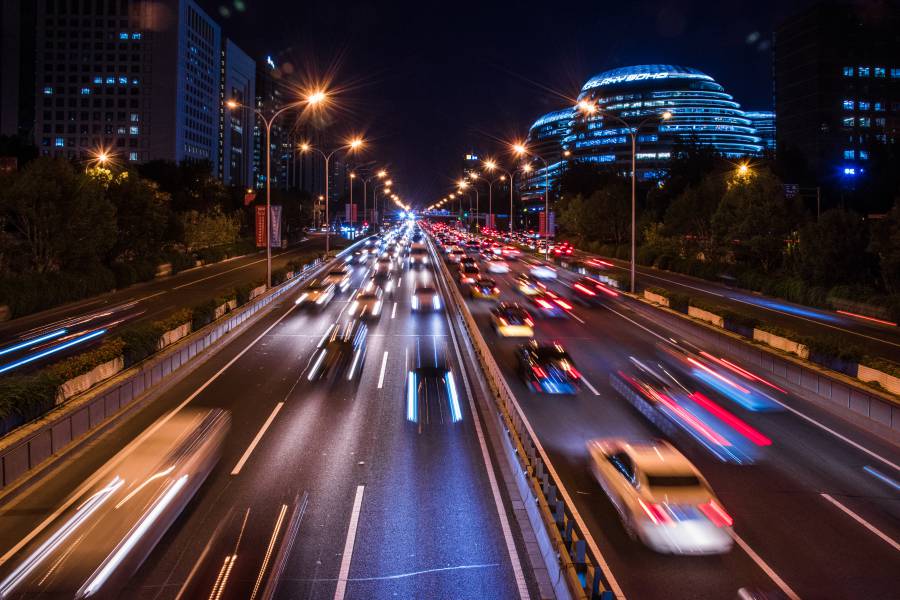

Application
