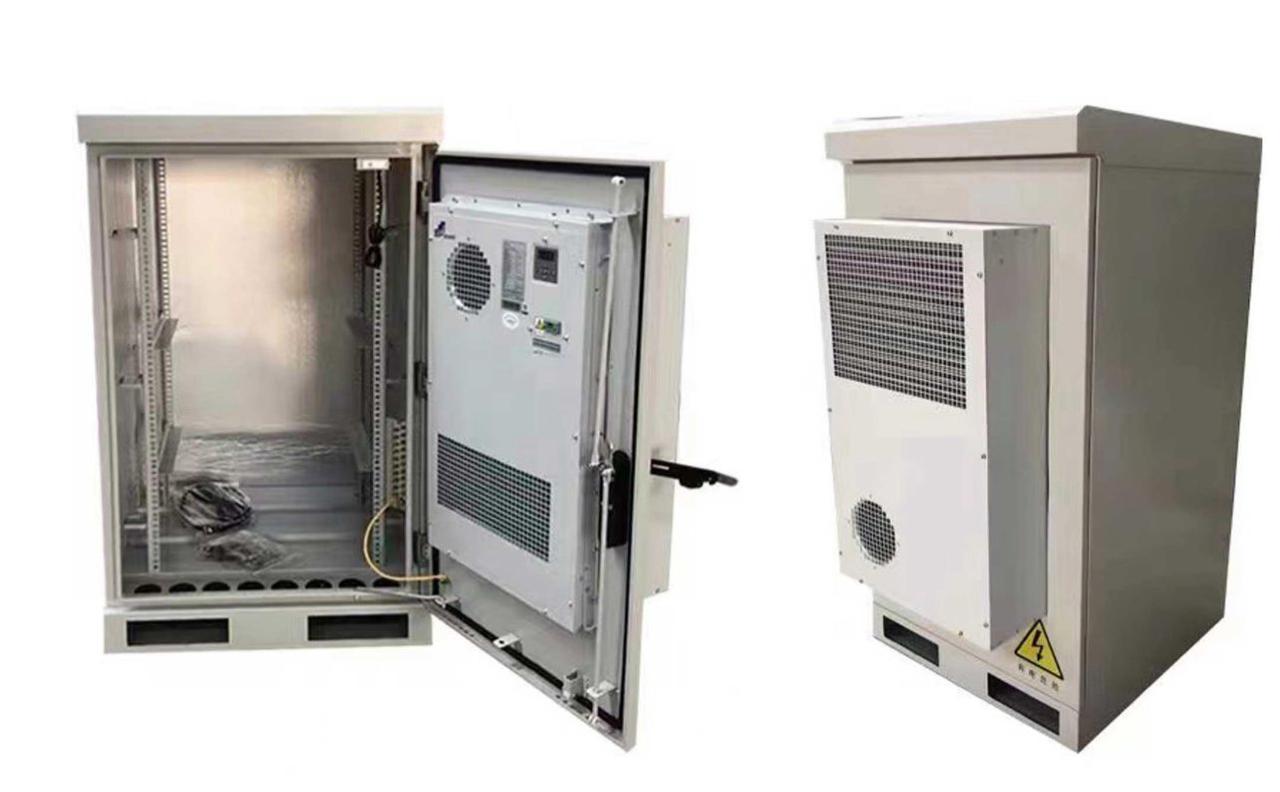

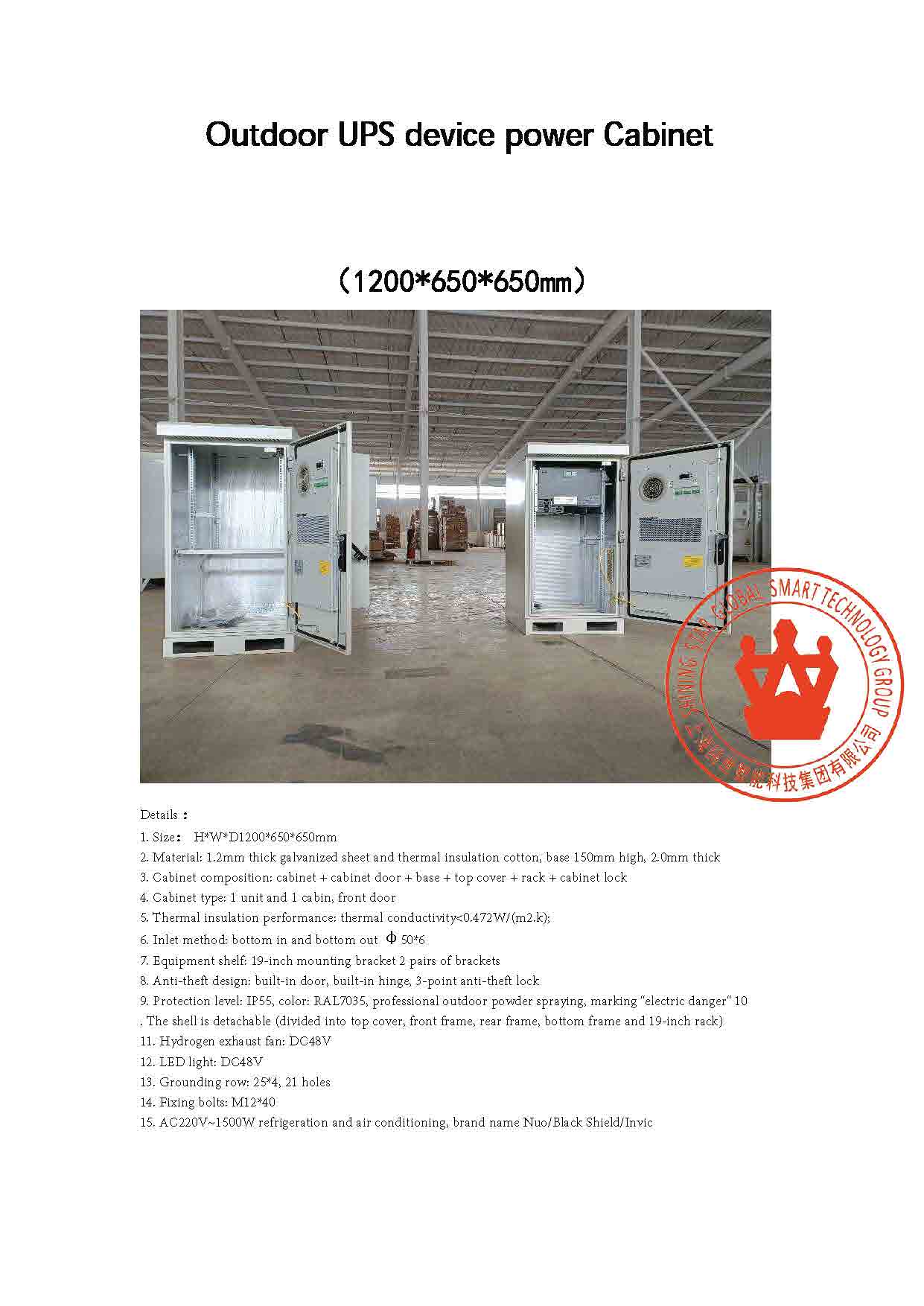

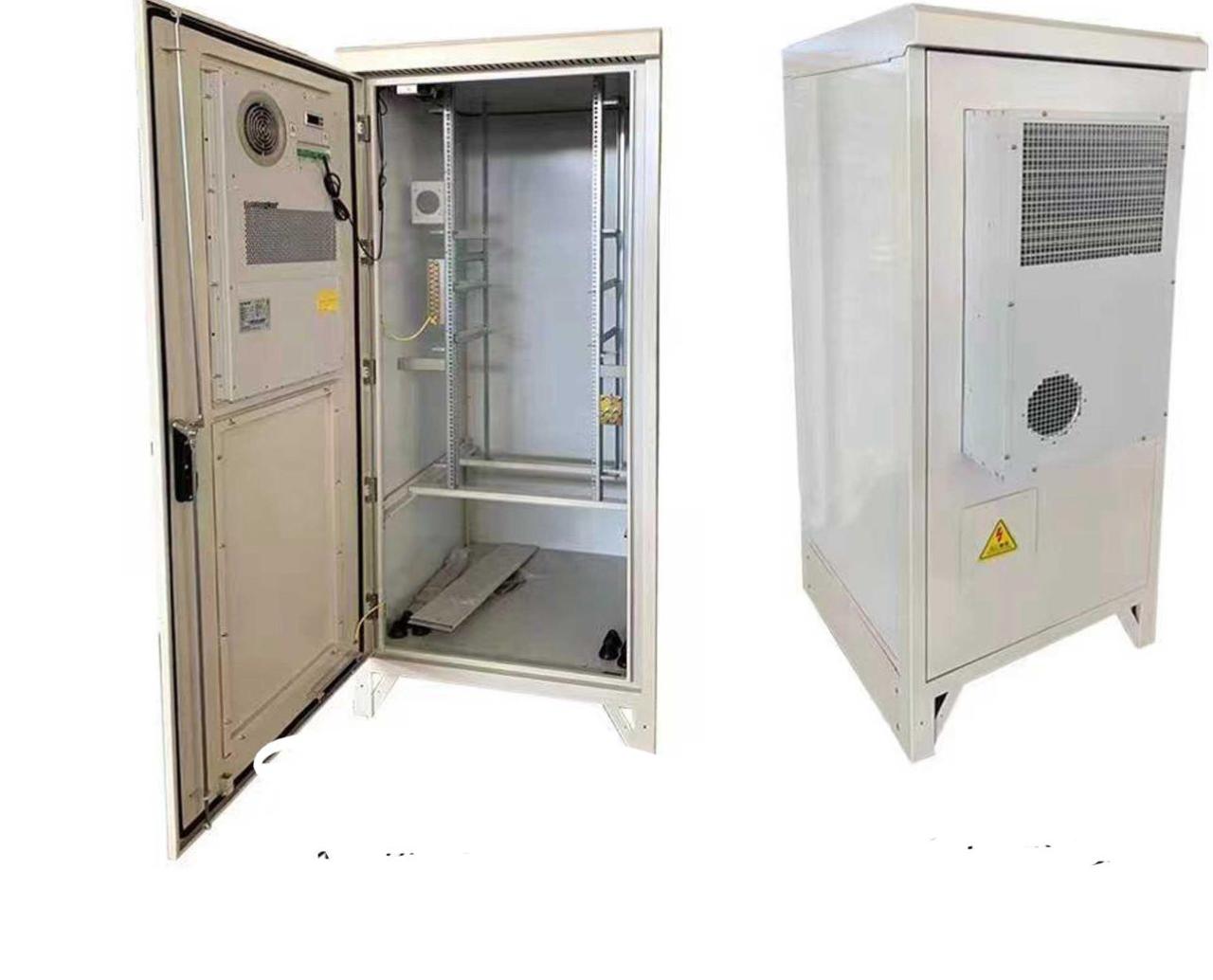

Details :

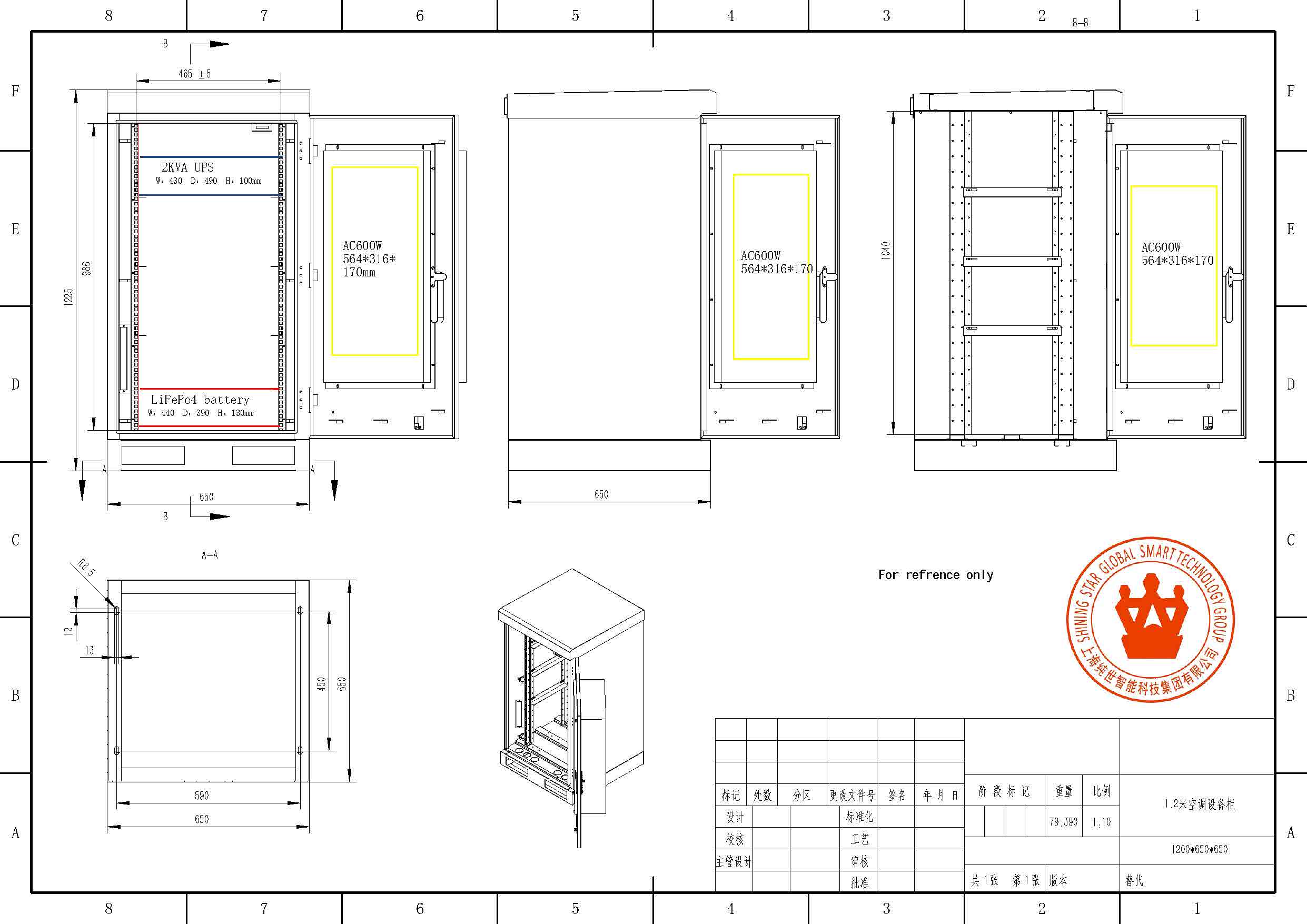

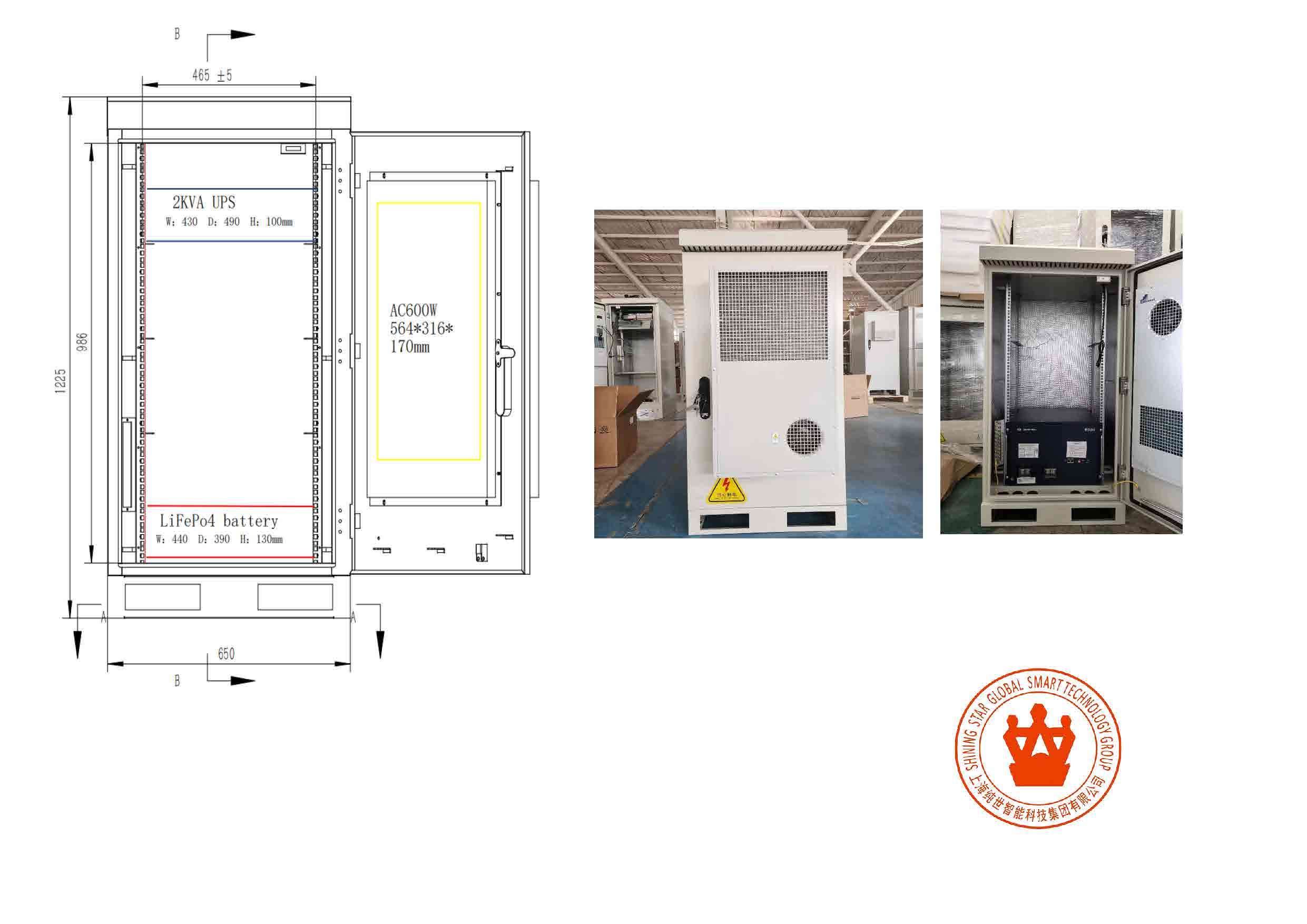

1. Size：H*W*D1200*650*650mm
2. Material: 1.2mm thick galvanized sheet and thermal insulation cotton, base 150mm high, 2.0mm thick
3. Cabinet composition: cabinet + cabinet door + base + top cover + rack + cabinet lock
4. Cabinet type: 1 unit and 1 cabin, front door
5. Thermal insulation performance: thermal conductivity<0.472W/(m2.k);
6. Inlet method: bottom in and bottom out φ50*6
7. Equipment shelf: 19-inch mounting bracket 2 pairs of brackets
8. Anti-theft design: built-in door, built-in hinge, 3-point anti-theft lock
9. Protection level: IP55, color: RAL7035, professional outdoor powder spraying, marking "electric danger" 10
10. The shell is detachable (divided into top cover, front frame, rear frame, bottom frame and 19-inch rack)
11. Hydrogen exhaust fan: DC48V
12. LED light: DC48V
13. Grounding row: 25*4, 21 holes
14. Fixing bolts: M12*40
15. AC220V~1500W refrigeration and air conditioning, brand name Nuo/Black Shield/Invic
